Spark Control X is a foot controller designed for use with Positive Grid's Spark LIVE, Spark, Spark MINI, and Spark GO amps. It features 6 steel switches with an aluminum housing and rubber side panels, multi-color LEDs for status indication, 2 expression pedal inputs, and more.








${ isLoadMoreClicked ? "See less photos" : "See more photos" }
6-SWITCH WIRELESS FOOTSWITCH
LOW STOCK
SPECS
CONTROLS AND CONNECTIVITY

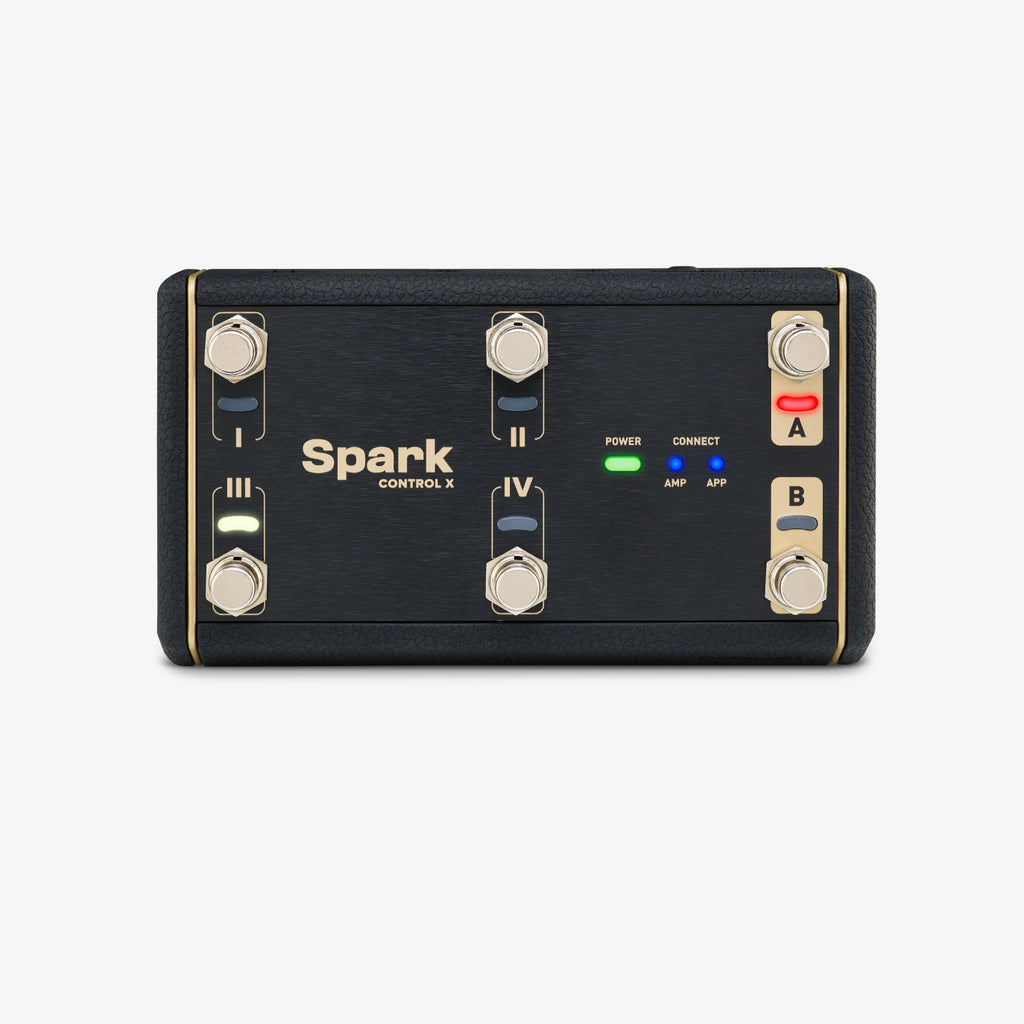

 TOP PANEL CONTROLS & DISPLAYS

6 x Steel Foot Switches
6 x Foot Switch Indicators (Multiple Color LEDs)
1 x Power Indicator (To display the battery level and power)
2 x Connection Indicators

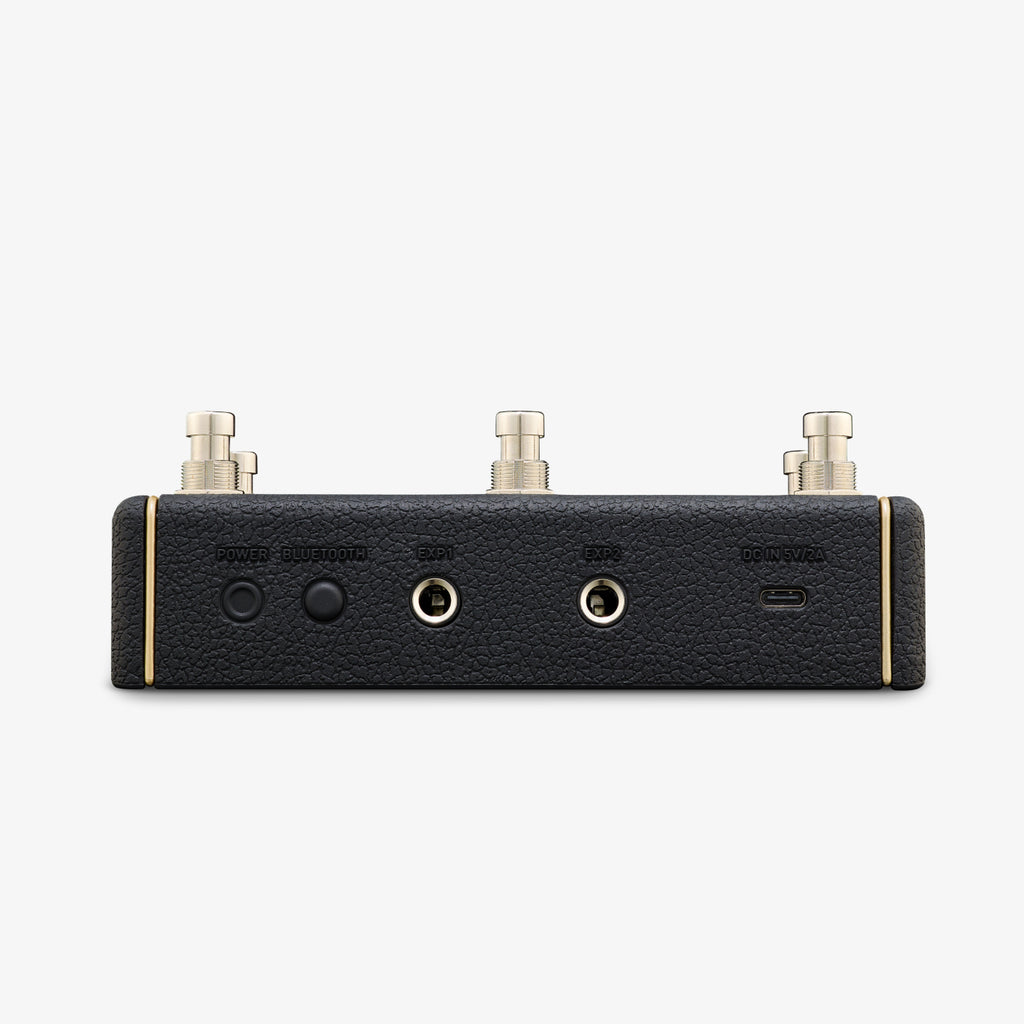

 REAR PANEL CONTROLS

Power Button
Pair Button

 DEFAULT PROFILES

Profile 1 - Preset Mode (To switch the Spark amp presets)

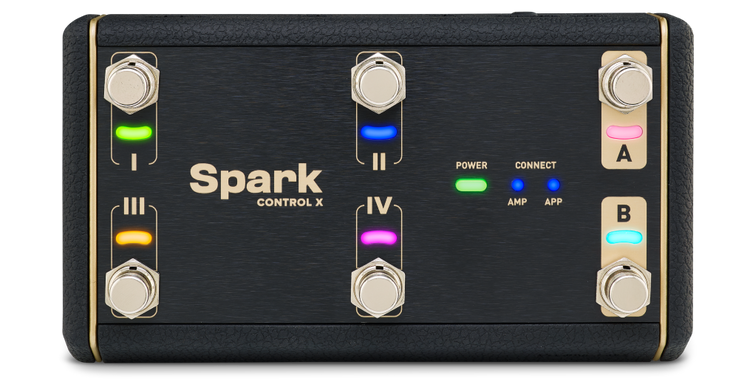

Profile 2 - Stompbox Mode (To toggle the effects)

 WIRED CONNECTIVITY

 2 x ¼” Expression Pedal Jacks
1 x USB-C Port (For charging and data transmission)

 WIRELESS CONNECTIVITY

Bluetooth 5.0

 TRANSMISSION RANGE

Up to 55 feet line-of-sight (17 meters)
PHYSICAL UNIT

 DIMENSIONS

L 162.9 x W 90.9 x H 36.8 mm (Switch excluded) / H 54.8mm (Switch included)
(L 6.41 x W 3.57 x H 1.44 inch / H 2.15 inch)

 WEIGHT

0.45 kg
0.99 lb

INCLUDED IN THE BOX

 BOX CONTENTS

Spark Control X
USB A to C Cable
Overlays x 3
Quick Start Guide
Safety Instructions
POWER

 MAIN INPUT POWER

DC 5V/2A (USB)

 BATTERY TYPE

 Built-in 750mAh rechargeable lithium-ion battery
 PLAY TIME

Up to 150 hours

  CHARGING TIME

7.5 Hours

SOFTWARE

 MOBILE APPS

Spark App for iOS and Android
 iOS App: Learn more
Supported iOS version: iOS 12 or later
Android App: Learn more
Supported Android OS version: Android 8.1 or later
Control X Software:
Customize and assign commands for each footswitch
Customize up to 8 profiles

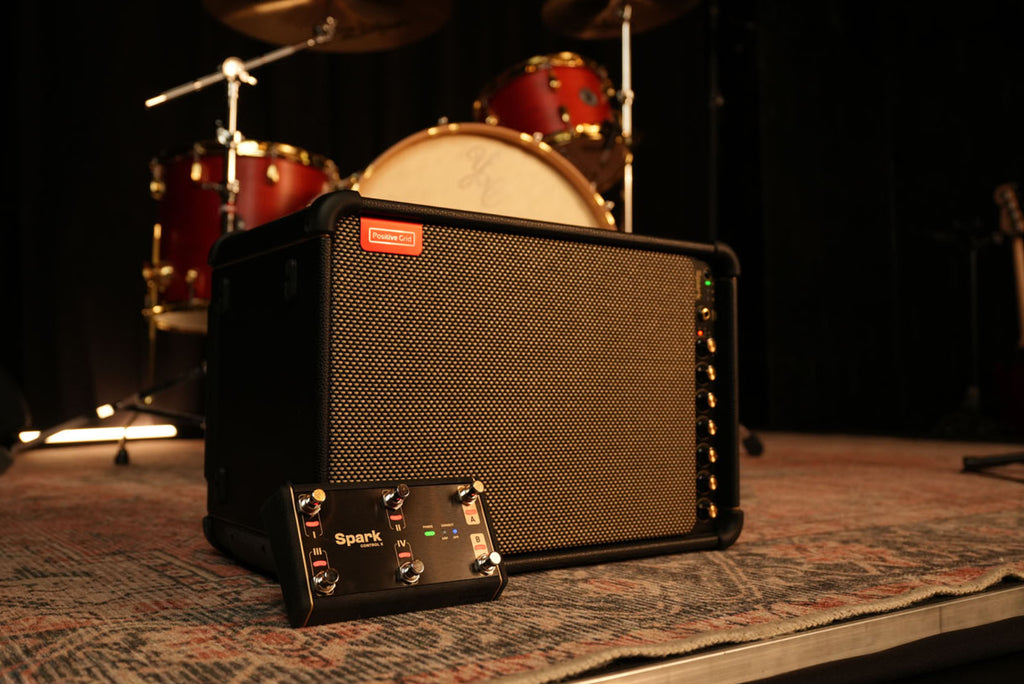

Maximum Control for Spark Series Amps
The next generation of Spark Control is here. Easily swap presets, toggle effects, and so much more with the 6-switch customizable Spark Control X, the official wireless footswitch for Spark series guitar amps.

More power.
More possibilities.
Take control of your Spark series amp like never before with Spark Control X, featuring 6 customizable foot switches, enhanced functionality, and a range of advanced customization features.

Seamless connectivity.

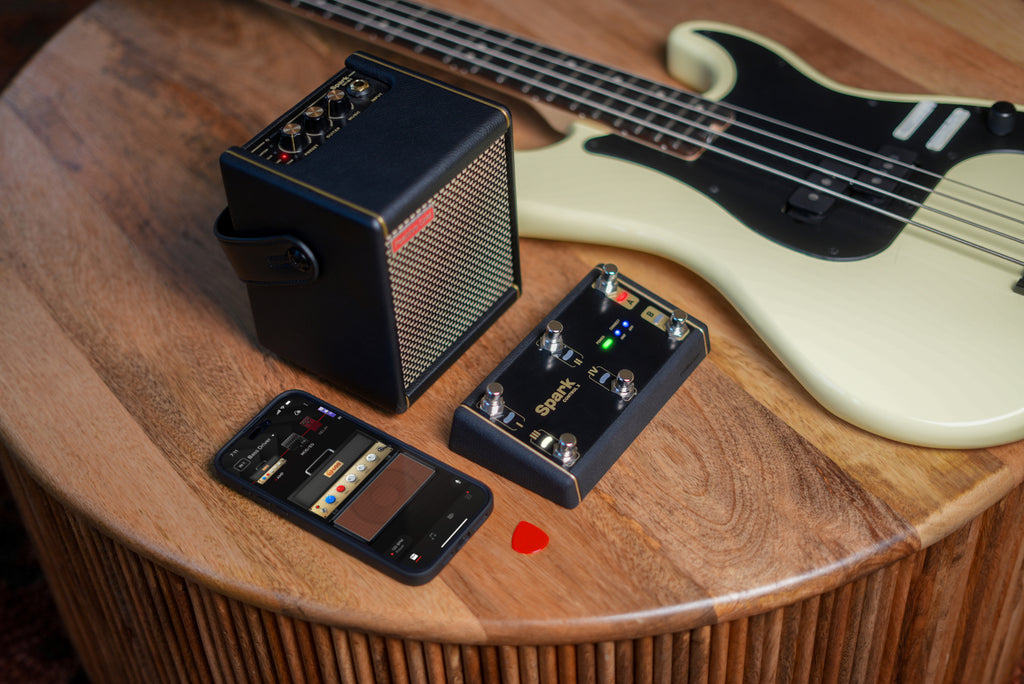

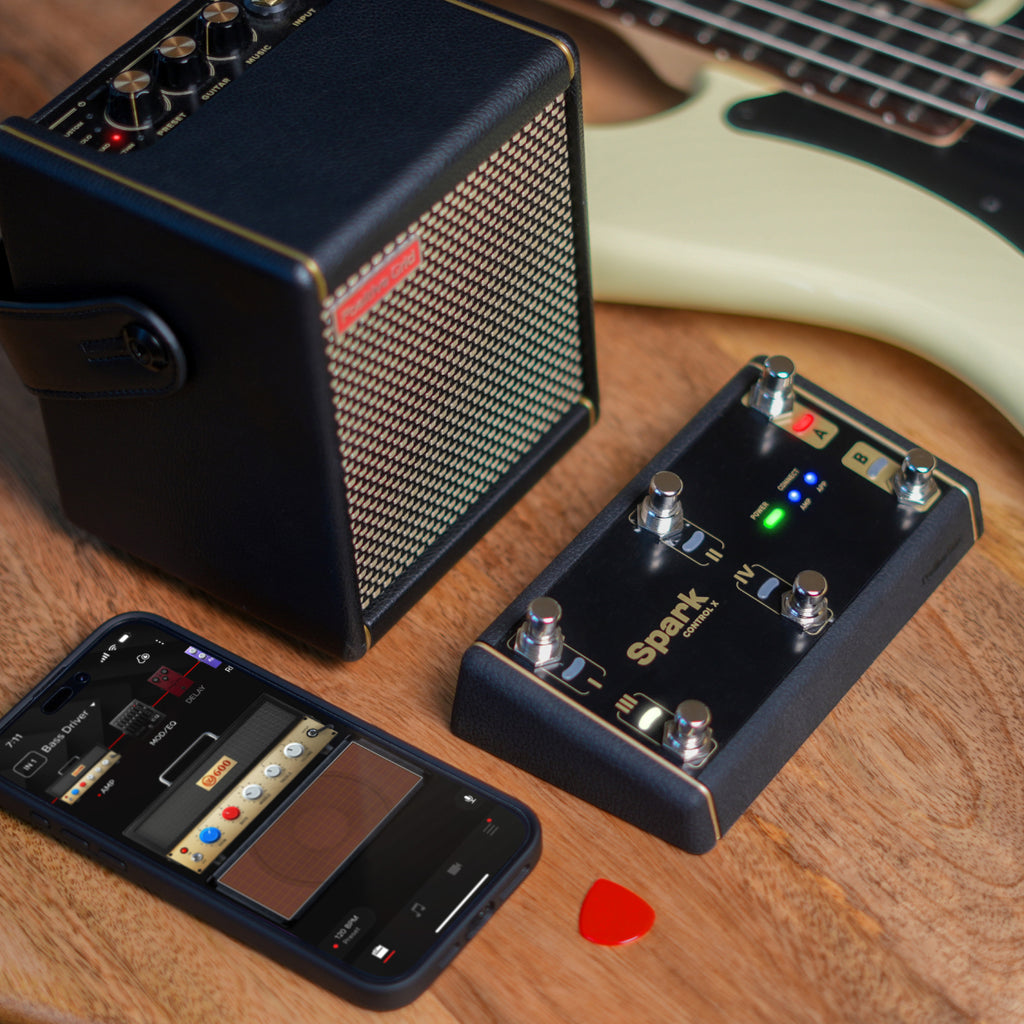

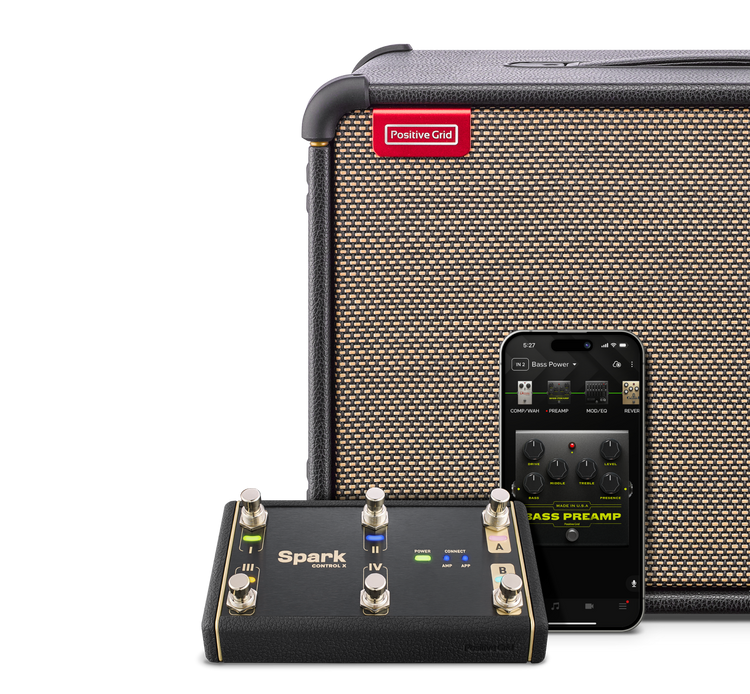

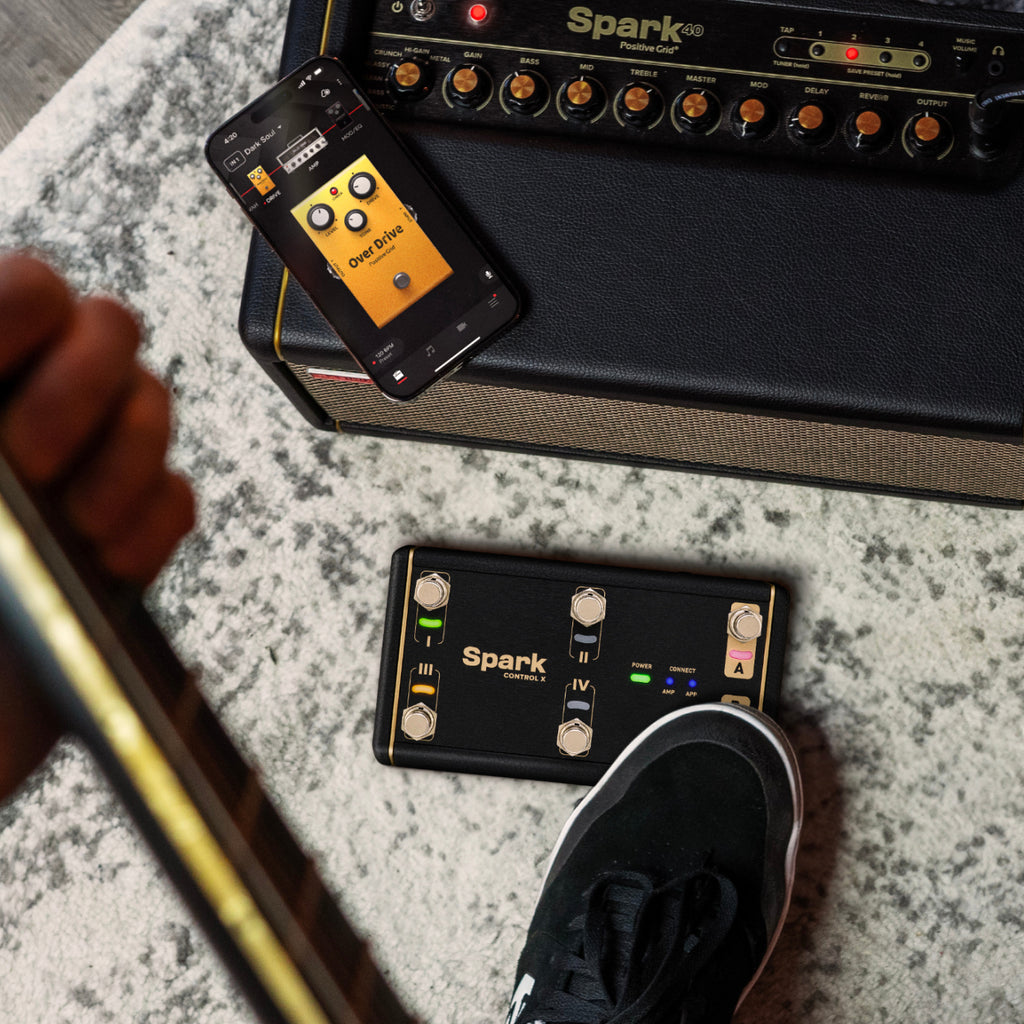

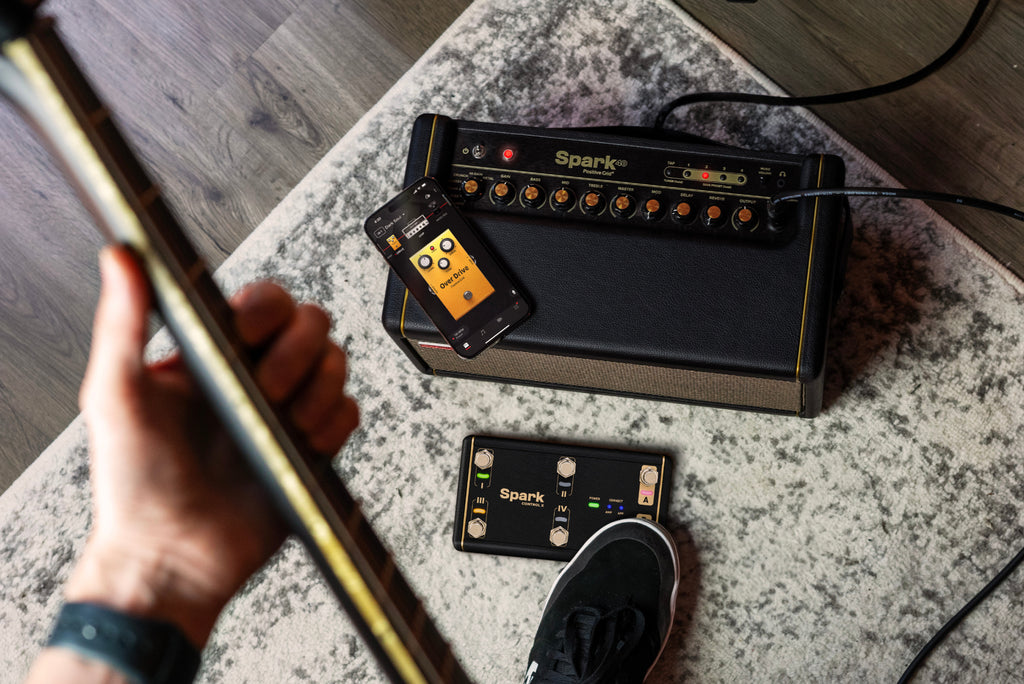

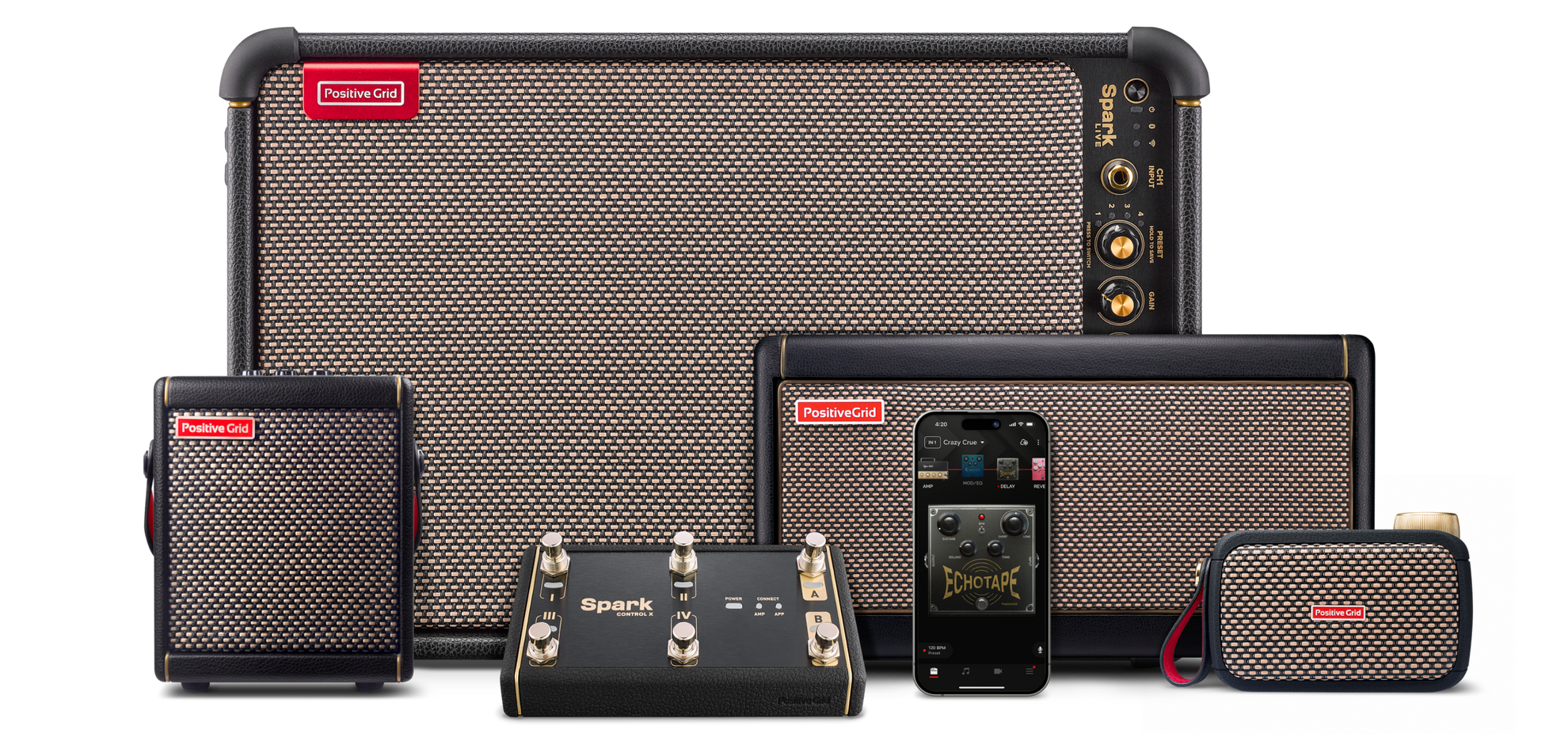

Spark Control X seamlessly connects to all Spark series amps through the Spark app, offering full control over your tone and jam sessions. For Spark LIVE users, enjoy the added benefit of direct hardware connectivity, no app required.
Complete control.

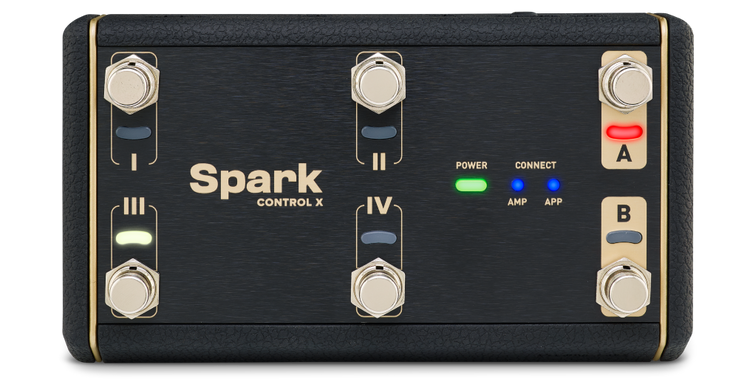

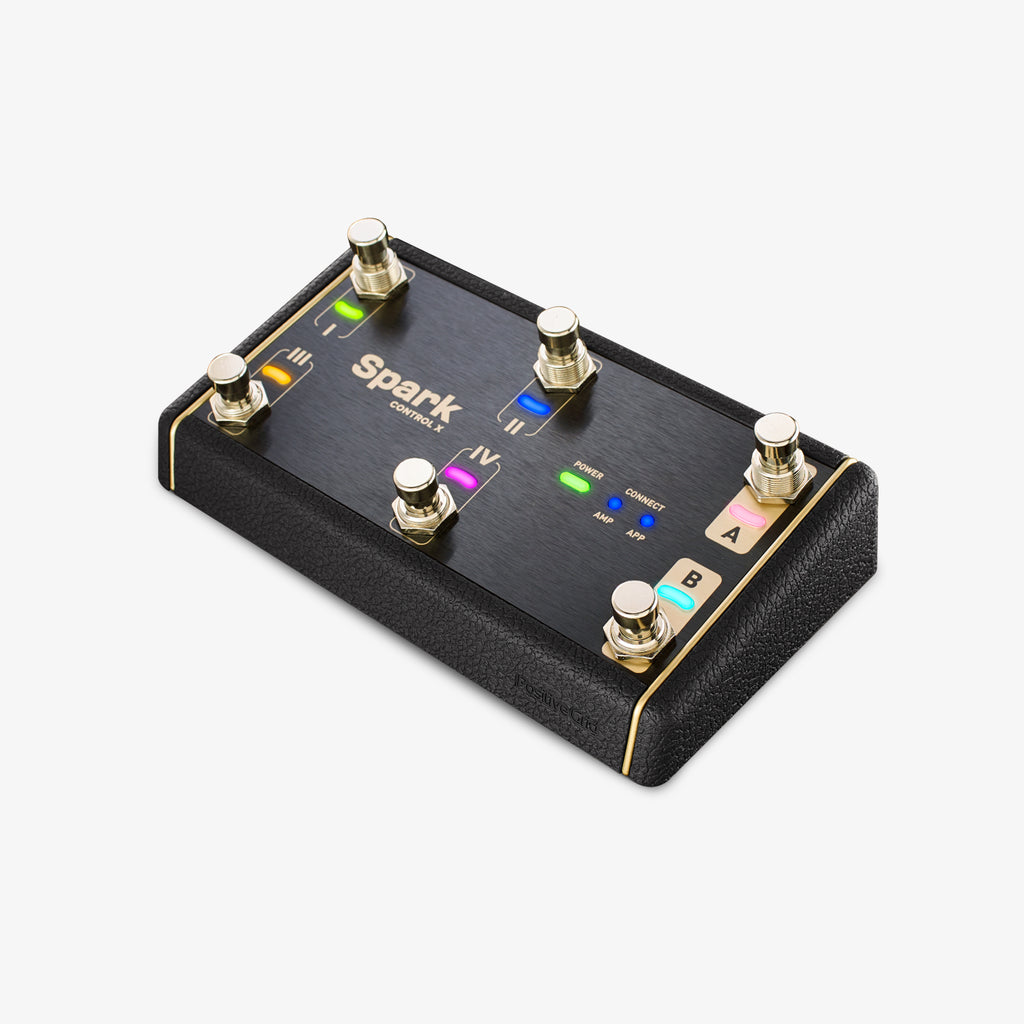

Spark Control X features 6 customizable footswitches each equipped with multi-color LED indicators that come pre-programmed right out of the box. Start jamming instantly without lifting a finger.

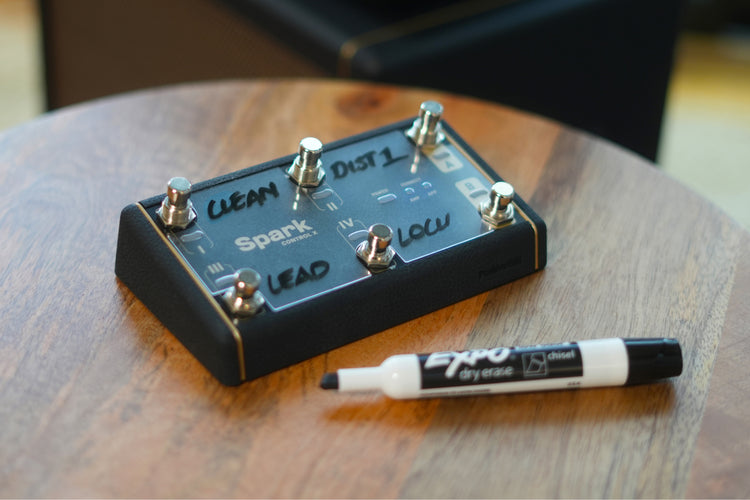

Overlays
Spark Control X includes 3 transparent overlays that fit perfectly over the face of the pedal. Customize them as you wish to instantly recall and access your favorite functions.


Expression pedal inputs.

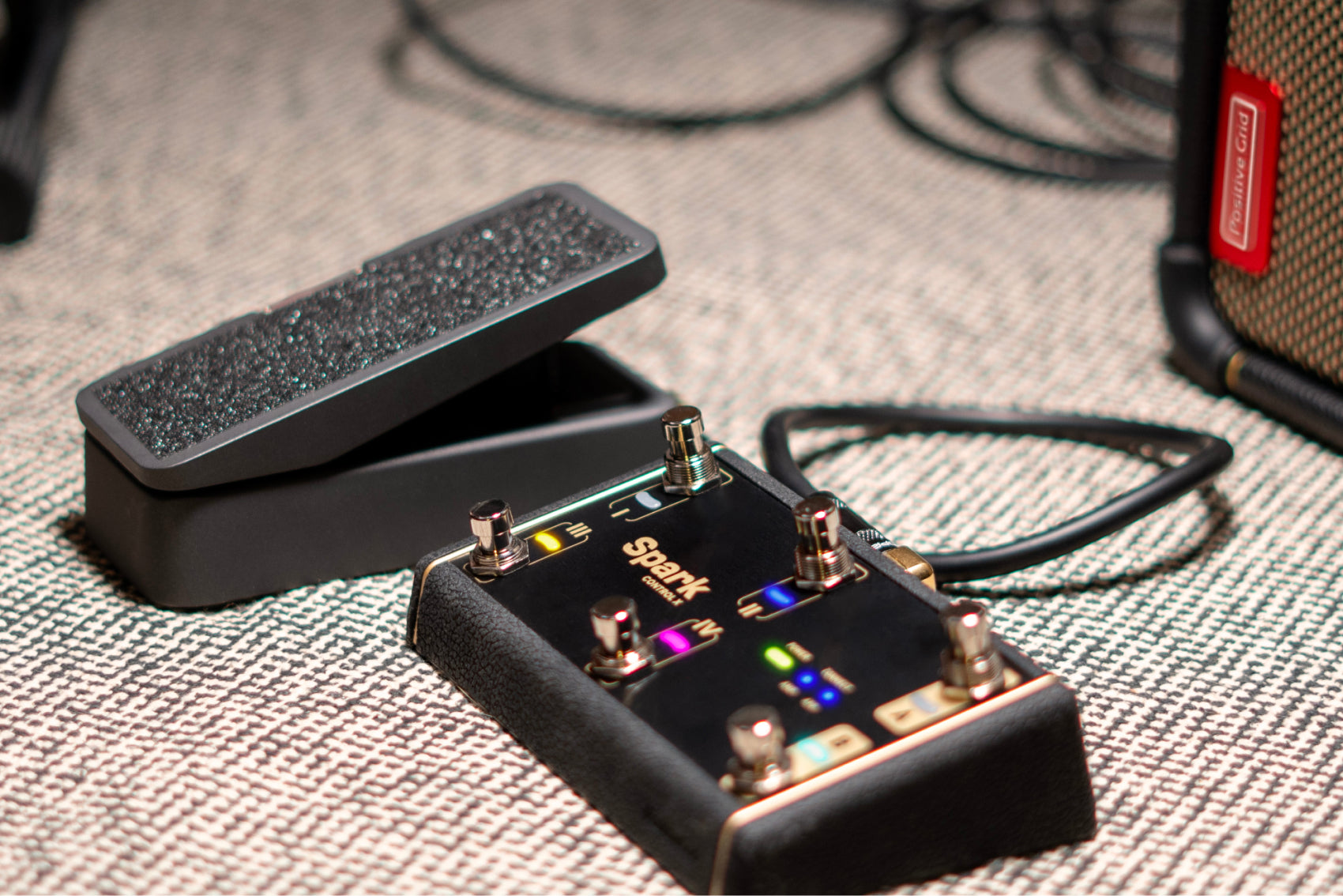

Craft your signature sound in the Spark app like never before by plugging in up to 2 TRS type expression pedals¹ directly into Spark Control X to manipulate channel volume and wah² in the Spark app.

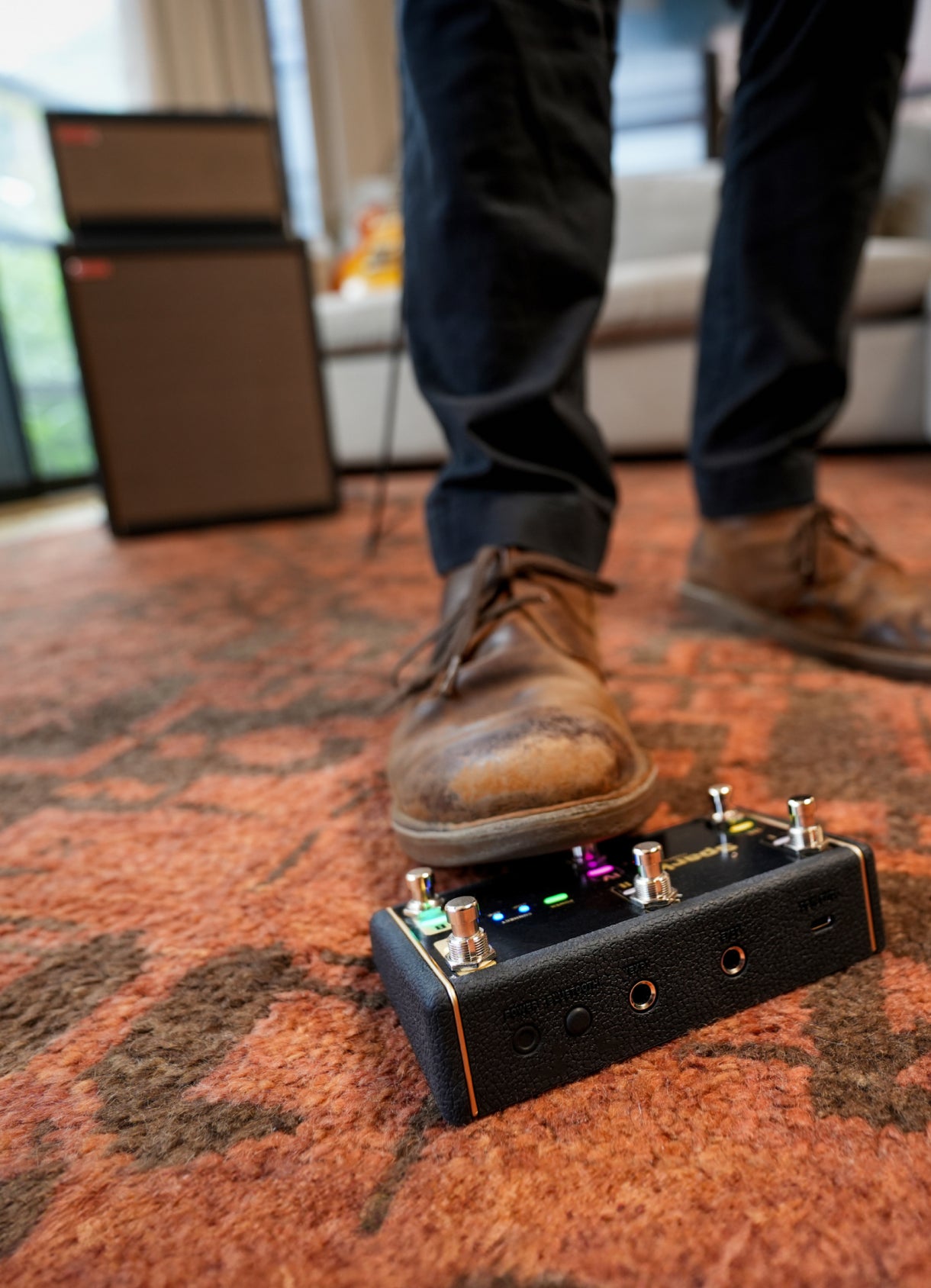

Built like a tank.

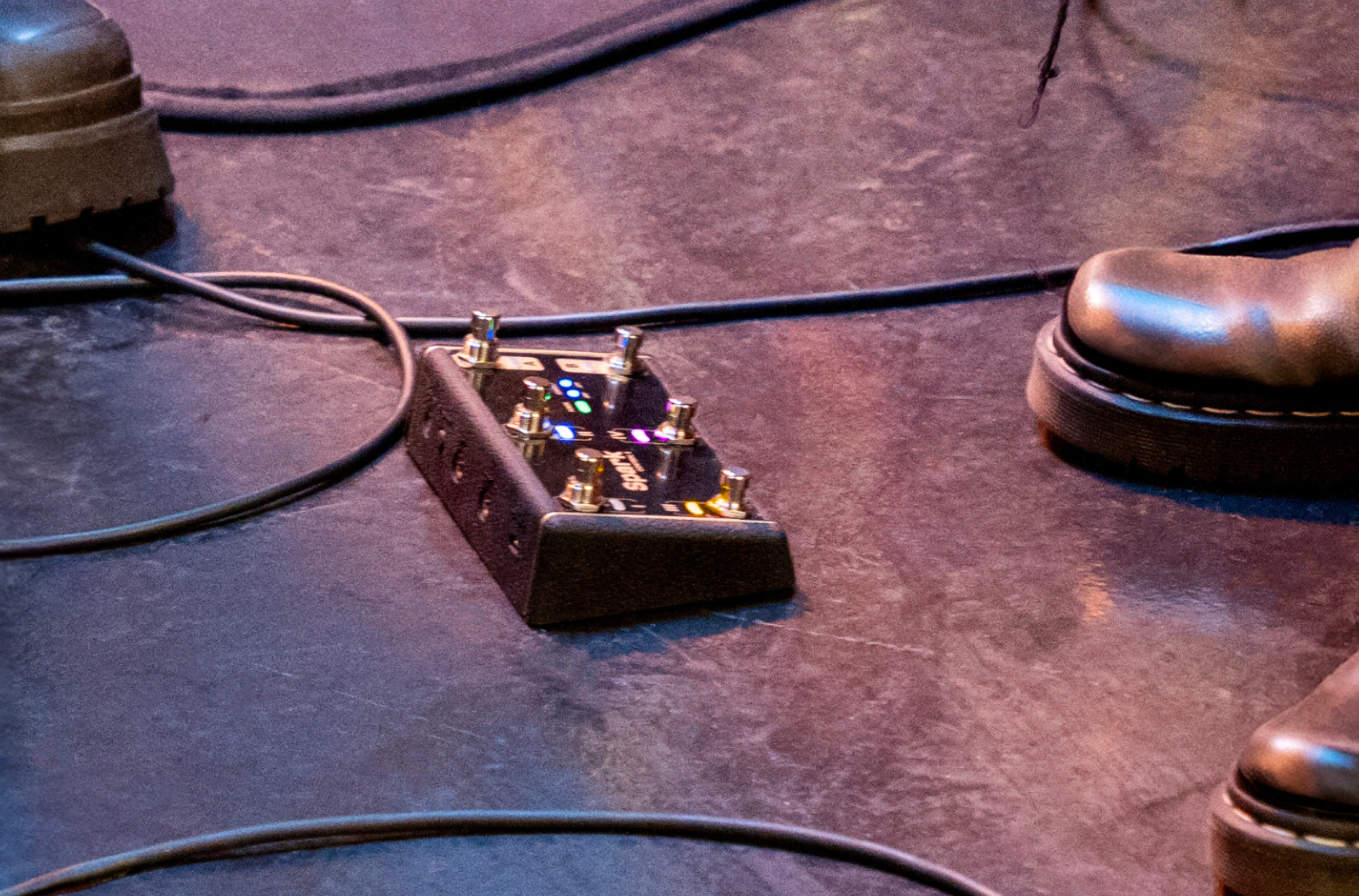

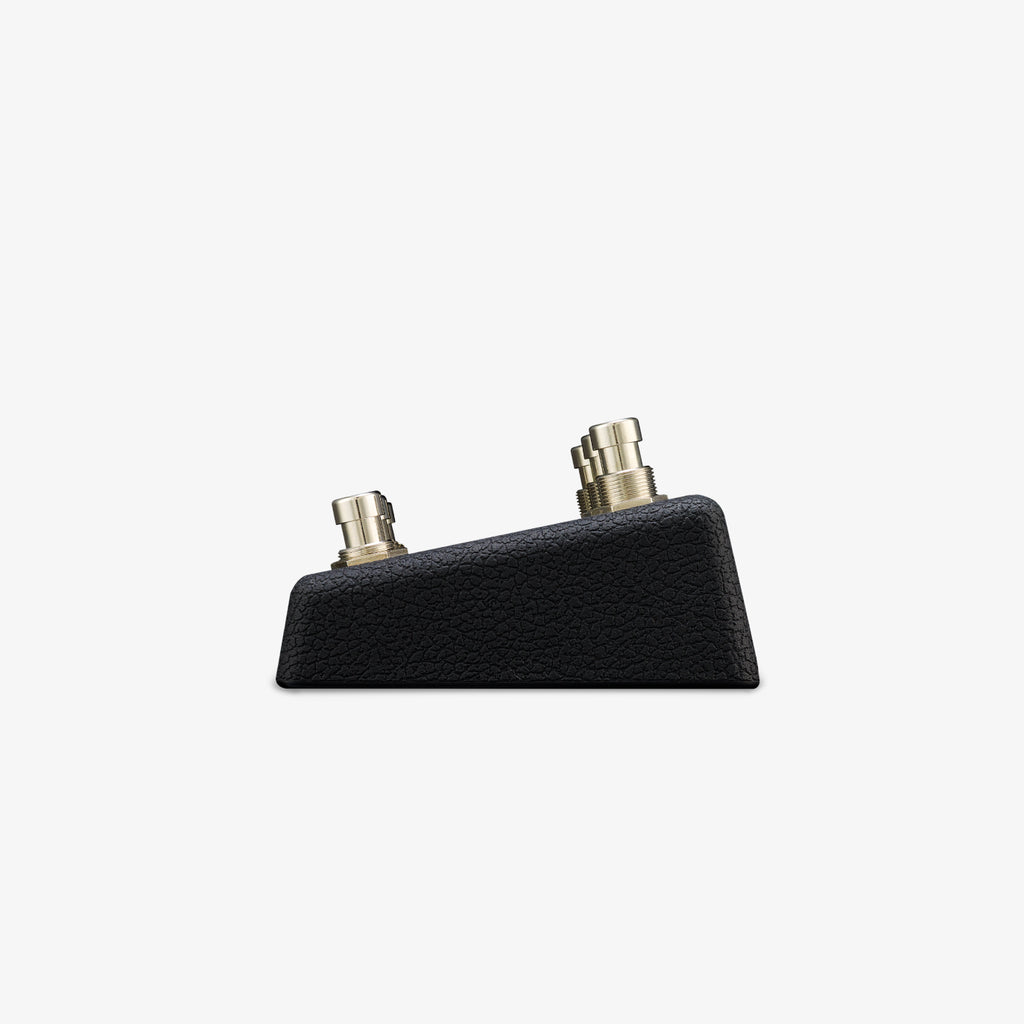

Crafted in a durable housing, Spark Control X is ready to endure relentless stomping during live gigs and studio sessions. A one-piece silicone cover also wraps Spark Control X, ensuring that it stays firmly anchored under your foot.

Power that lasts.
Equipped with a rechargeable battery, Spark Control X delivers up to 150 hours of playtime on a single charge. No more interruptions during rehearsals or performances—enjoy extended jam sessions without compromise.

All instruments welcome.

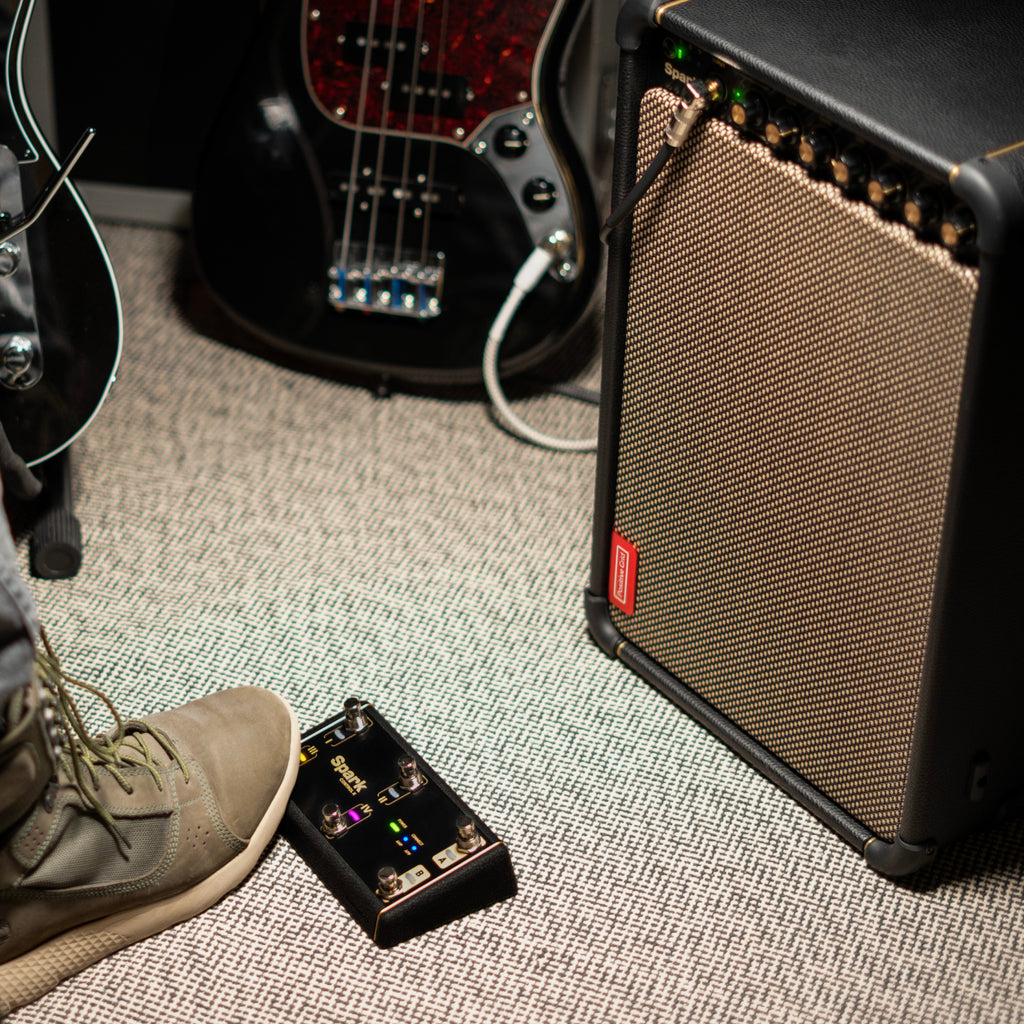

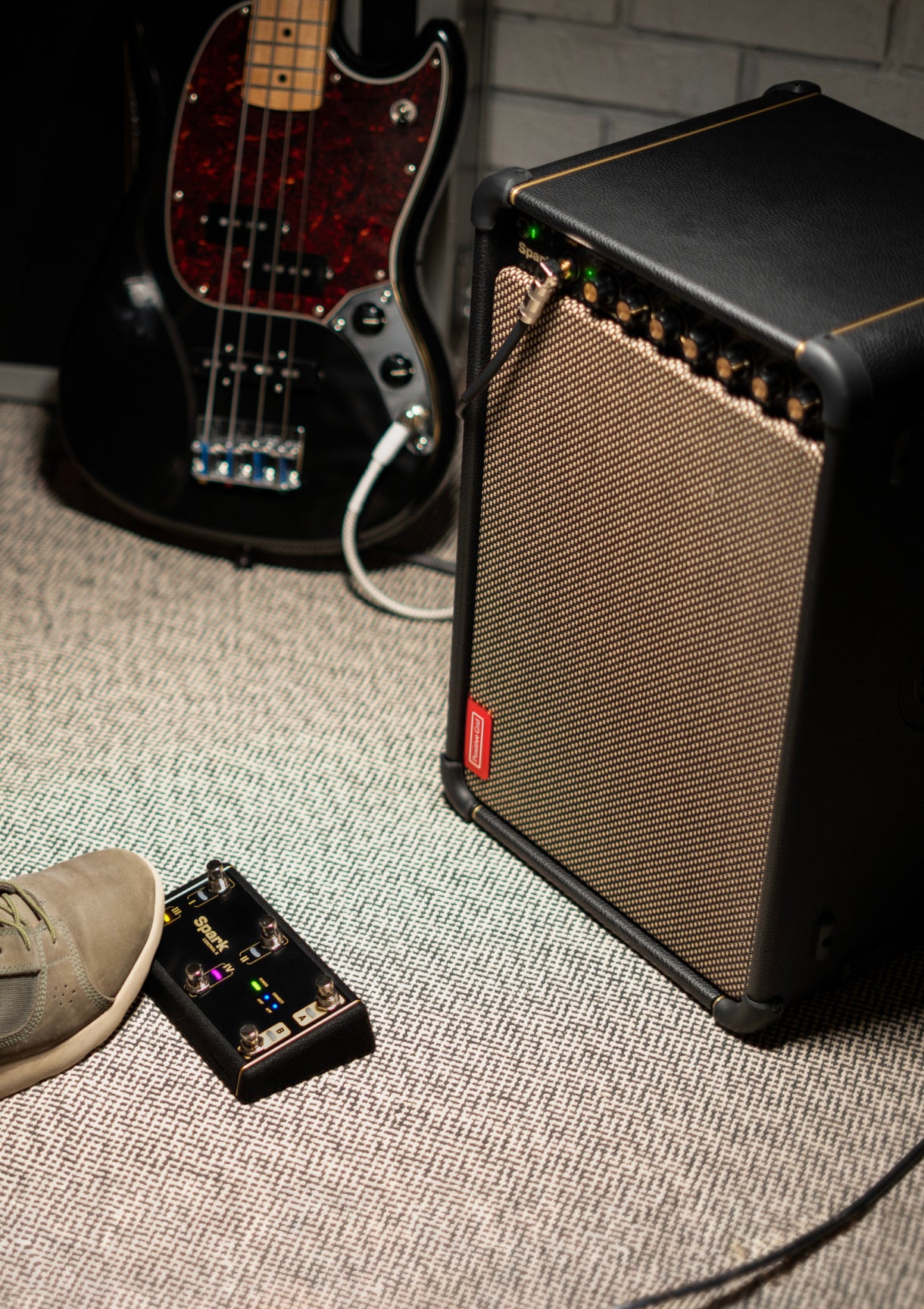

Get creative with your instrument of choice without interruption. Electric guitar, electric-acoustic, bass, and more, Spark Control X offers full, hands-free control over your Spark series amp no matter what you play.

Maximum control.




¹ Expression pedal not included..
² Requires Experience Jimi Hendrix™ Official Gear Collection
* Spark Control X is only compatible with Spark series guitar amps.
